Designing for Success: Common Mistakes in Injection Molding for Electronics and How to Avoid Them
In the fast-paced world of electronics, the demand for precision and reliability is at an all-time high. Yet, even seasoned engineers can fall prey to common pitfalls in injection molding design. Let's explore these mistakes and how to sidestep them for successful, high-quality production.
Designing for Success: Common Mistakes in Injection Molding for Electronics and How to Avoid Them
In the fast-paced world of electronics, the demand for precision and reliability is at an all-time high. Yet, even seasoned engineers can fall prey to common pitfalls in injection molding design. Let's explore these mistakes and how to sidestep them for successful, high-quality production.

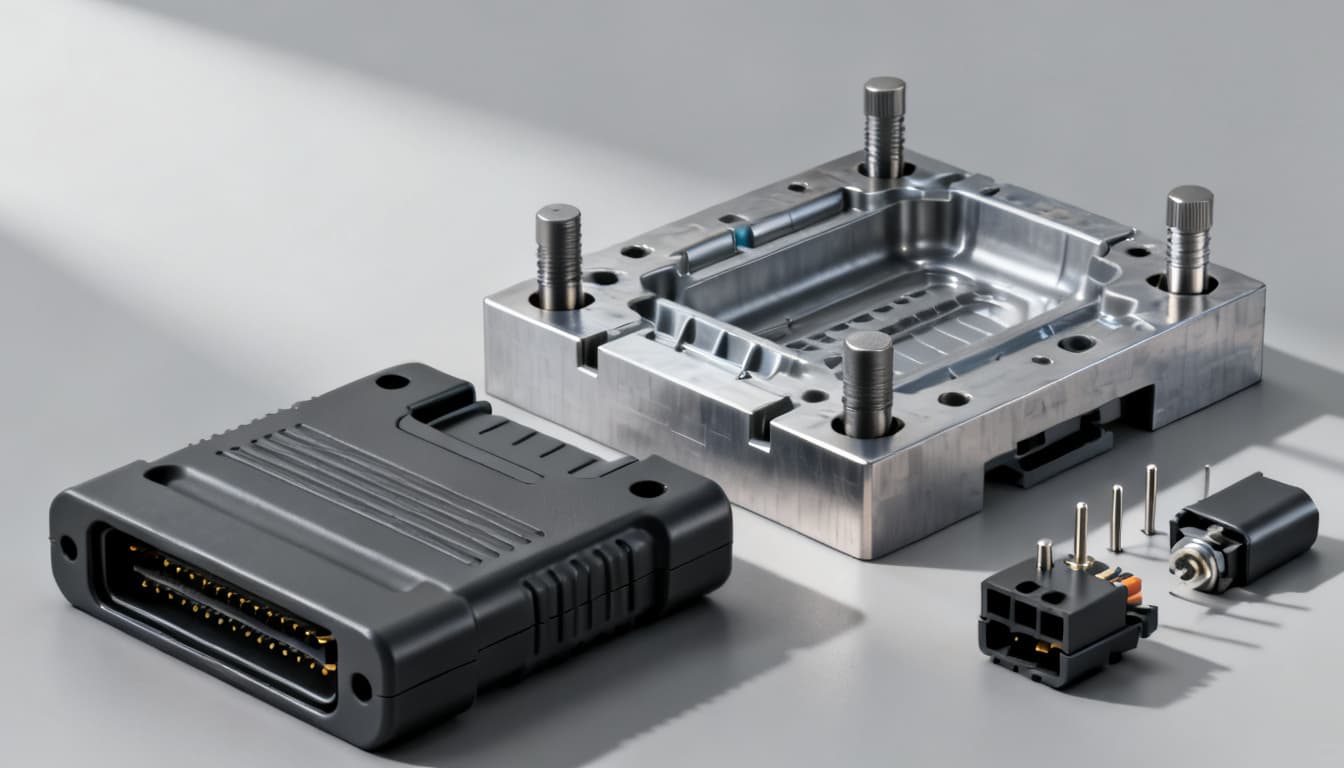

Understanding Material Selection
Choosing the Right Polymer
Material selection is critical in injection molding for electronics. Common materials include ABS, PP, PC, and PA66, each with specific properties that suit different applications. For instance, ABS is known for its toughness and impact resistance, making it ideal for casing components.
| Material | Properties | Applications |
|---|---|---|
| ABS | Impact resistance, toughness | Casing, enclosures |
| PP | Flexibility, fatigue resistance | Hinges, clips |
| PC | High strength, transparency | Lens, clear covers |
| PA66 | High mechanical strength, thermal resistance | Connectors, gears |
Material Properties and Processing Parameters
Each material requires specific processing parameters. For example, ABS typically requires a melt temperature between 210-250°C and a mold temperature of 50-70°C. Failure to adhere to these parameters can lead to defects such as warping or incomplete filling.
Designing for Manufacturability
Wall Thickness
Uniform wall thickness is crucial to prevent issues like sink marks and warping. A general rule of thumb is to maintain wall thickness between 1-3mm. Variations can lead to differential cooling rates, causing structural weaknesses.
Incorporating Draft Angles
Draft angles facilitate the easy ejection of parts from the mold. A draft angle of 0.5-2° is recommended to minimize friction and prevent damage to the mold or part.
Optimizing Mold Design
Gate Design and Placement
The gate is the entry point for molten plastic into the mold cavity. Proper gate design and placement are essential to ensure uniform flow and minimize defects. For instance, a well-placed gate can reduce weld lines, which are often a weak point in the final product.
Venting and Cooling
Effective venting and cooling are necessary to prevent defects like burn marks and warping. Vent depths should be around 0.02-0.05mm to allow trapped air to escape without causing flash.
Common Defects and Their Solutions
Warping
Warping occurs due to uneven cooling. Solutions include maintaining uniform wall thickness and optimizing cooling channels within the mold.
Short Shots
Short shots happen when the mold cavity is not completely filled. Increasing injection pressure or adjusting the melt temperature can often resolve this issue.
Checklist for Successful Injection Molding
- Choose the appropriate material with the necessary properties for your application.
- Ensure uniform wall thickness and incorporate adequate draft angles.
- Design the mold with optimal gate placement and effective venting.
- Set precise processing parameters including melt temperature and injection pressure.
- Regularly inspect and maintain the mold to prevent wear and defects.
Practical Tip: Always conduct a mold flow analysis before production to identify potential issues and optimize the design for manufacturability.
Conclusion
Injection molding for electronics is a complex process that demands attention to detail. By understanding material properties, adhering to design best practices, and optimizing mold parameters, you can avoid common pitfalls and ensure the success of your manufacturing projects. For professional assistance, get a free quote from our experts at Panda Molding.
