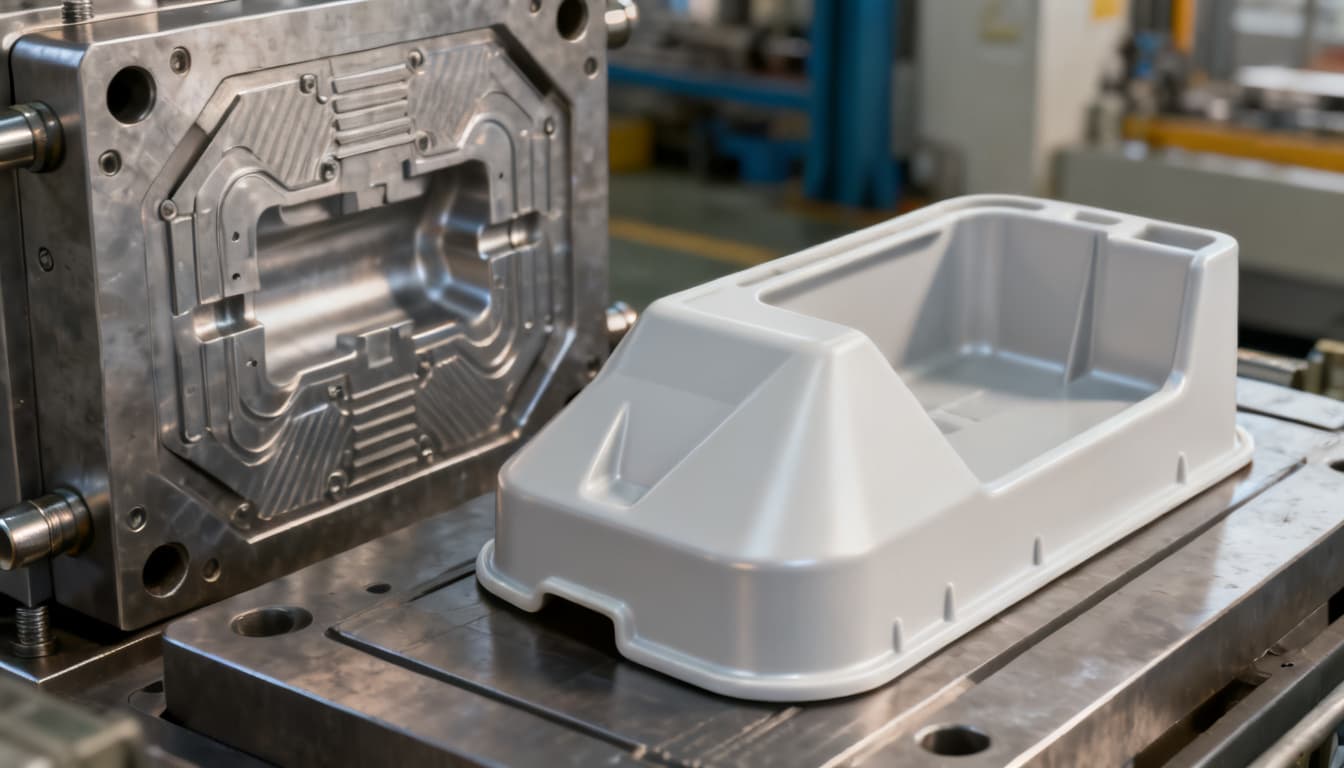

Optimal Draft Angle Selection for Injection Molding: An Engineer’s Data-Driven Guide

The Ejection Penalty: Why ‘Zero Draft’ Is a Production Nightmare

Ask any toolmaker about the most persistent design myth in injection molding, and they’ll point to the belief that draft can be minimized or eliminated altogether. Product engineers often push for perfectly vertical walls to satisfy aesthetic or assembly constraints, assuming that a polished core and a little mold release will handle ejection. The reality is far more punishing. As Protolabs emphasizes, no single draft angle fits all part designs—wall thickness, material selection, shrink rates, texture, and part depth all interact to determine whether a part ejects cleanly or tears itself apart.

When draft is insufficient, the part grips the core like a shrink-fit collar. The ejection system must then overcome that grip with brute force. Ejector pins punch through soft plastic, leaving visible witness marks or, worse, cracking bosses and thin ribs. Drag lines score vertical surfaces, turning a cosmetic face into a reject. Cycle times climb because the press must dwell longer to cool the part enough to release, or because operators must manually pry stuck parts from the mold. Over weeks of production, the added stress accelerates tool wear—galling on cores, bent ejector pins, and micro-cracks in sharp corners. Hubs puts it bluntly: designing draft correctly is key to obtaining a competitive cost and shortening lead time. Ignore it, and you’re buying longer cycles, higher scrap rates, and unplanned tool maintenance.

Even a seemingly trivial 0.5° of draft can slash ejection force by 30–50% compared to a zero-draft wall. The penalty for “zero draft” isn’t just a theoretical risk—it’s a daily production headache that erodes margins and delays shipments. The data-driven approach starts with accepting that draft is not a design compromise; it’s a manufacturing requirement that, when optimized, actually improves part quality and reduces total cost.

The Mechanics of Draft: Taper, Shrinkage, and the 25:1 Rule of Thumb

Draft angle is defined as the degree of taper applied to vertical faces of a molded part, measured relative to the parting line. Upmold and Fictiv both describe it as the intentional inclination that allows the part to release from the mold without interference. The physics behind it is straightforward: as molten polymer cools, it shrinks. In most geometries, the part shrinks onto the core (the male side of the mold), creating a mechanical interference fit. Draft reduces the contact pressure progressively as the part moves during ejection, converting a high-friction stick-slip event into a smooth release.

A reliable starting point is the 25:1 rule, codified from decades of mold trials by PTSmake: for every 25 mm of vertical wall depth, provide at least 1° of draft. A 100 mm tall part, therefore, needs a minimum of 4° of draft per side. This rule accounts for typical shrinkage rates of unfilled amorphous and semi-crystalline resins and assumes a smooth, untextured surface. When texture enters the picture, the rule must be augmented—a topic we’ll cover shortly.

The table below distills minimum draft recommendations for common material and finish combinations. Use it as a quick-reference baseline, but always validate with your molder and, for high-volume programs, mold flow analysis.

Material	Unfilled, Smooth Finish (min. draft)	Light Texture (SPI-B, ~0.001" depth)	Heavy Texture (SPI-C, ~0.003" depth)	Notes
ABS (unfilled)	0.5°–1.0°	1.5°–2.0°	3.5°–4.0°	Add 0.5° per 0.001" texture depth; PTSmake recommends 1° base + texture tax
PC/ABS blend	1.1° baseline	2.1°–2.6°	4.1°–4.6°	Split the difference between PC and ABS; 1.1° is a proven starting point from mold trials
Polypropylene (PP)	0.5°–1.0°	1.5°–2.0°	3.5°–4.0°	Flexible; can tolerate lower draft but deep ribs still need 1° per 25 mm
Nylon 6/6 (unfilled)	0.5°–1.0°	1.5°–2.0°	3.5°–4.0°	Semi-crystalline; higher shrinkage demands careful core draft
Nylon 6/6 GF30 (30% glass-filled)	1.25°–1.5°	2.25°–2.5°	4.25°–4.5°	Glass fibers reduce elasticity; insufficient draft causes fiber pull-out and surface roughness
Polycarbonate (PC)	0.5°–1.0°	1.5°–2.0°	3.5°–4.0°	Amorphous, rigid; prone to stress cracking if ejection force is high

Tip: The “texture tax” is non-negotiable. PTSmake’s field data shows that each 0.001” (0.025 mm) of texture depth requires an additional 1° of draft. A part with a 0.002” deep SPI-C1 grain needs 2° extra on top of the base draft. Ignore this, and the texture will act like sandpaper, scraping against the cavity steel and erasing the pattern—or locking the part in place.

Draft can be expressed in degrees or as a linear taper (mm/mm or in/in). A 1° angle equates to roughly 0.017 mm of taper per mm of depth. While the 25:1 rule gives you a safe floor, always consider the specific polymer’s shrinkage, the mold surface finish, and the ejection stroke length. The next section breaks down how material chemistry and filler content drive these numbers higher.

Material-Specific Draft Requirements: ABS, PC/ABS, and Glass-Filled Nylon Side by Side

Not all plastics release the same way. Amorphous resins like ABS and polycarbonate shrink less and can sometimes get away with slightly lower draft on the cavity side, but they still grip the core tenaciously. Semi-crystalline materials like nylon and polypropylene exhibit higher and more anisotropic shrinkage, which can tighten the part onto the core even more. Adding glass fiber reinforcement changes the game entirely: the fibers increase stiffness and reduce elongation at break, so the part cannot flex to release from an under-drafted wall without surface damage or cracking.

The comparison matrix below draws on mold trial data from PTSmake and the material-agnostic cautions from Protolabs. It highlights how the same nominal draft angle can succeed or fail depending on filler content and texture depth.

Material	Unfilled Minimum Draft (smooth)	Draft for 0.002" Texture (SPI-B2)	Glass-Filled Minimum Draft (smooth)	Selection Criteria & Failure Boundary
ABS (general purpose)	0.5°–1.0°	2.5°–3.0°	1.25° (GF-ABS)	Below 0.5° on a 50 mm wall: high risk of ejector punch-through. Textured ABS demands base + 1° per 0.001".
PC/ABS blend	1.1°	3.1°	1.5° (GF-PC/ABS)	1.1° baseline from PTSmake trials; blends balance flow and stiffness. Under 1° on textured surfaces leads to drag marks.
Nylon 6/6 (unfilled)	0.5°–1.0°	2.5°–3.0°	—	Moisture-conditioned nylon can swell, tightening on core. Use 1° per 25 mm rule strictly.
Nylon 6/6 GF30	—	—	1.25°–1.5°	Glass fibers reduce shrinkage but increase surface friction. Less than 1.25° causes fiber exposure and galling.
Polypropylene (PP) homopolymer	0.5°–1.0°	2.5°–3.0°	1.0° (GF-PP)	Flexible, but deep ribs still need 1° per 25 mm. Glass-filled PP requires extra draft to avoid whitening.

The takeaway is clear: filler content and texture depth are the dominant drivers of draft angle requirements. A glass-filled ABS part with a heavy texture can easily need 4°–5° of draft per side, while an unfilled, smooth ABS part of the same depth might release reliably at 1°. Always start with the material supplier’s shrinkage data and the texture spec, then apply the 25:1 rule as a sanity check. When in doubt, add an extra 0.5°—the cost of a slightly thicker wall at the base is trivial compared to a tooling rework or chronic scrap.

Designing for Ejection: How to Calculate, Validate, and Optimize Draft Angles Before Tooling

Moving from a rule-of-thumb to a production-ready draft specification requires a methodical, data-driven workflow. The following four-step process integrates the 25:1 rule, texture allowances, mold flow simulation, and toolmaker collaboration to lock in draft angles that balance moldability, part quality, and cycle time.

Calculate the base draft using the 25:1 rule. Measure the maximum vertical depth of the part from the parting line. Divide that depth (in mm) by 25 to get the minimum draft in degrees. For a 75 mm deep housing, the base draft is 3°. Apply this to all vertical faces, ribs, and bosses that are parallel to the draw direction.
Add the texture allowance per SPI finish. Refer to the texture specification from your industrial designer or mold texture supplier. The table below translates common SPI grades into additional draft requirements. Add this “texture tax” to the base draft. For example, a 75 mm deep part with an SPI-B2 finish (0.002” depth) needs 3° base + 2° texture = 5° total draft per side.
Simulate ejection with mold flow analysis. Modern simulation software (Moldflow, Moldex3D) can predict ejection force, stress distribution, and potential sticking locations. Run an ejection analysis with the calculated draft angles, material shrinkage data, and mold surface friction coefficients. If the predicted ejection force exceeds the safe limit for your ejector system, increase draft or add additional ejection features.
Collaborate with the toolmaker to adjust for complex geometries. Share the simulation results and get feedback on ribs, deep pockets, and undercuts. Toolmakers often recommend adding 0.5°–1° extra on core pins and deep bosses because local shrinkage can amplify grip. Protolabs advises applying draft early in the design phase to all vertical faces—retrofitting draft after tooling design is far more expensive.

A real-world case from PTSmake illustrates the payoff: a toy manufacturer’s project was struggling with long cycle times and occasional sticking. By optimizing draft from 0.75° to 1.2° on a textured ABS part—still within the acceptable cosmetic envelope—cycle time dropped 22%. The seemingly small 0.45° increase reduced ejection force enough to shave seconds off each shot, saving thousands of dollars over the production run.

SPI Finish Grade	Typical Texture Depth (inches)	Additional Draft Required (per side)	Application Notes
A-1 (high polish, no texture)	0	0°	Base draft only; mirror finish may require extra draft to avoid vacuum grip
A-2	0.0005"	0.5°	Very fine grain; minimal texture tax
A-3	0.001"	1.0°	Fine matte; common for consumer electronics
B-1	0.0015"	1.5°	Medium texture; automotive interior trim
B-2	0.002"	2.0°	Medium-coarse; often used on housings
B-3	0.003"	3.0°	Coarse texture; requires significant draft
C-1	0.004"	4.0°	Heavy leather grain; deep draft mandatory
C-2	0.005"	5.0°	Very coarse; rarely used on deep walls
C-3	0.006"+	6.0°+	Extreme texture; consult texture supplier

Note: The texture tax is additive. If your base draft from the 25:1 rule is 3° and you specify an SPI-B2 finish, total draft becomes 5°. Always round up to the nearest 0.5° for safety. For parts with multiple textures on different faces, apply the highest required draft uniformly to avoid complex tooling adjustments—or work with the toolmaker to vary draft locally.

Draft Angle Questions Engineers Ask Before Signing Off on a Mold Design

Senior engineers and injection molding buyers rarely ask “what is draft?” Instead, they probe the edge cases that can make or break a mold. Below are the nuanced questions that surface during design reviews, along with data-backed answers.

Q: What’s the absolute minimum draft angle I can use for a low-volume prototype mold?

Even for prototypes, 0.5° is the practical minimum for unfilled materials like ABS or polypropylene. Going below 0.5° risks part sticking and hand-loading damage during manual ejection. Prototype aluminum tools are softer and more prone to galling, so insufficient draft can quickly degrade surface finish. Always consult your molder for material-specific limits—some flexible grades may release at 0.25°, but that’s the exception, not the rule.

Q: How do I translate a specified texture depth into an additional draft angle?

Add 1° of draft per 0.001” (0.025 mm) of texture depth, as per SPI guidelines and validated by PTSmake. For example, a 0.002” deep grain requires an extra 2° on top of the base draft. This rule holds for most common textures; for very deep, undercut-prone patterns, consult your texture supplier for a precise draft recommendation.

Q: Can side actions or lifters eliminate the need for draft on undercut features?

Side actions and lifters can release undercuts, but they do not replace draft on the main walls. Draft is still required for smooth ejection and to prevent drag marks on vertical surfaces that remain in the line of draw. Even with side actions, the core and cavity walls must have adequate taper to avoid scuffing during mold opening and part ejection.

Q: How does draft affect part shrinkage and dimensional accuracy?

Draft introduces a slight taper, meaning the wall thickness at the base is slightly larger than at the top. This can cause dimensional variation along the wall, especially on tall parts. Compensate by adjusting steel dimensions in the mold—toolmakers can “steel-safe” the cavity to account for the taper—or by maintaining uniform wall thickness to control shrinkage. For critical fits, specify the dimension at a particular height and let the toolmaker build the taper accordingly.

Q: When does a draft angle become too large and cause sink marks or warpage?

Excessive draft on thick sections can lead to uneven cooling and sink marks because the thicker base cools more slowly than the thinner top. Keep draft within 3°–5° unless geometry demands more. If a part requires a draft angle above 5°, consider coring out material to maintain uniform wall thickness and avoid warpage. Always pair generous draft with good design for manufacturability practices.

Q: Is there a difference in draft requirements for core vs. cavity?

Yes. The core (male side) typically needs more draft because the part shrinks onto it, increasing ejection force. The cavity (female side) can sometimes use less draft because the part tends to pull away from it during cooling. A common rule is to add 0.5°–1° extra draft on the core side for amorphous materials like ABS and polycarbonate. For semi-crystalline resins with higher shrinkage, the differential may be even larger. Always simulate or consult your toolmaker to balance core and cavity draft.

Getting draft right is a collaborative effort between design, tooling, and production. The data-driven approach—grounded in the 25:1 rule, texture tax, material-specific requirements, and mold flow validation—turns draft from a guessing game into a predictable engineering parameter. At PandaMolding, we help product teams optimize draft angles early, reducing tooling iterations and accelerating time to market. Get a quote for your next injection molding project and let’s put these principles into practice.
